Print moving parts

Zortrax M300 Dual
#1

Hi,
Can You provide me with info how to print moving parts, what is the minimal tolerance between parts.
I uploaded a model in which I need moving parts. Can I place support between that parts or it’s placed autocratically?

Thank You

mehanizam_4.stl (479.8 KB)

#2

Hi, Marko.

Minimum space requirement is 0.4mm for movable objects.

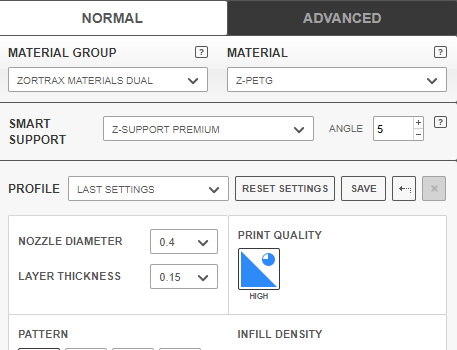

Support is generated automatically in Dual mode, you just need to adjust the angle in the settings.
obraz
