Side covers with hooks for Zortrax M200 before and after ;)

My new side covers just arrived. They look great. No instructions included and I can't find them anywhere on Zortrax.com. Luckily pioo took photos of his but I still have one piece I'm not sure what to do with. Photos of the front and back below. Any ideas?



Please inform support about missing manual this will help to find out why it happen and prevent this with other packages.

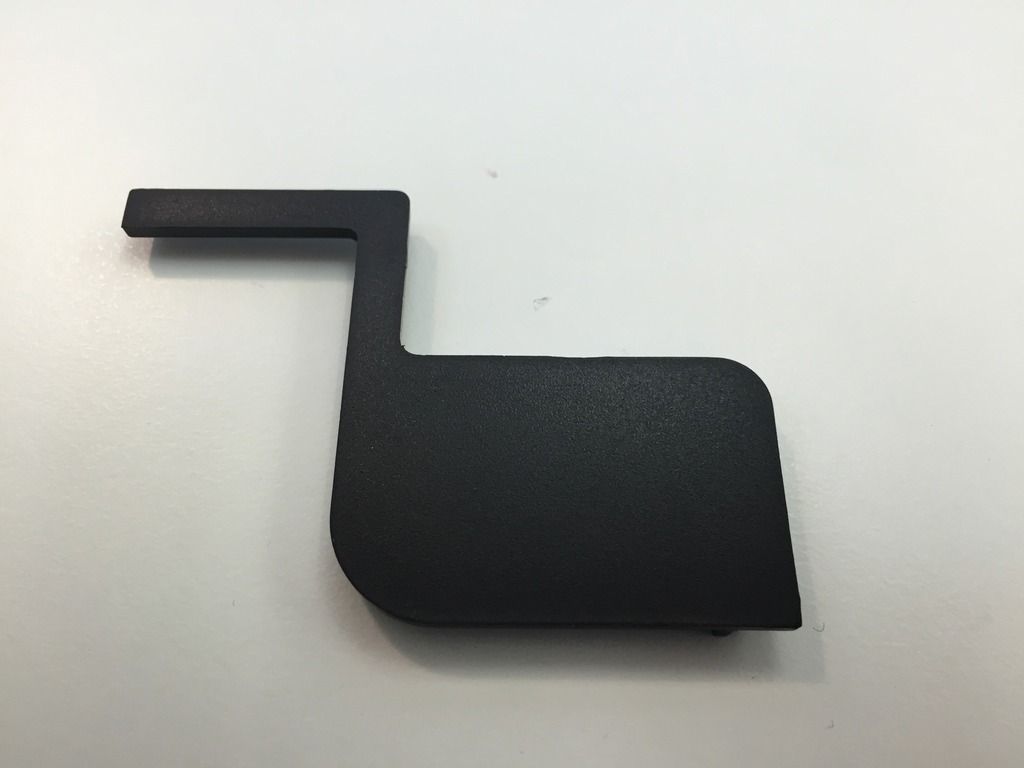

This two parts are jigs for correctly place hinges - in attachment you can find .pdf manual.

Best Regards

After some measuring and placing it at random locations on the printer, i figured that's what it was for. Now I know for sure! Thanks.

They must have changed the directions from the set that pioo has. His seem to say, put the hinges on the door first, then install to locate the hinge placement.

Thanks for uploading. I'll let support know. Both sets I ordered were missing instructions.

My new side covers just arrived. They look great. No instructions included and I can't find them anywhere on Zortrax.com. Luckily pioo took photos of his but I still have one piece I'm not sure what to do with. Photos of the front and back below. Any ideas?



I'm a little disappointed that they are not printed.... :lol: :D

I'm a little disappointed that they are not printed.... :lol: :D

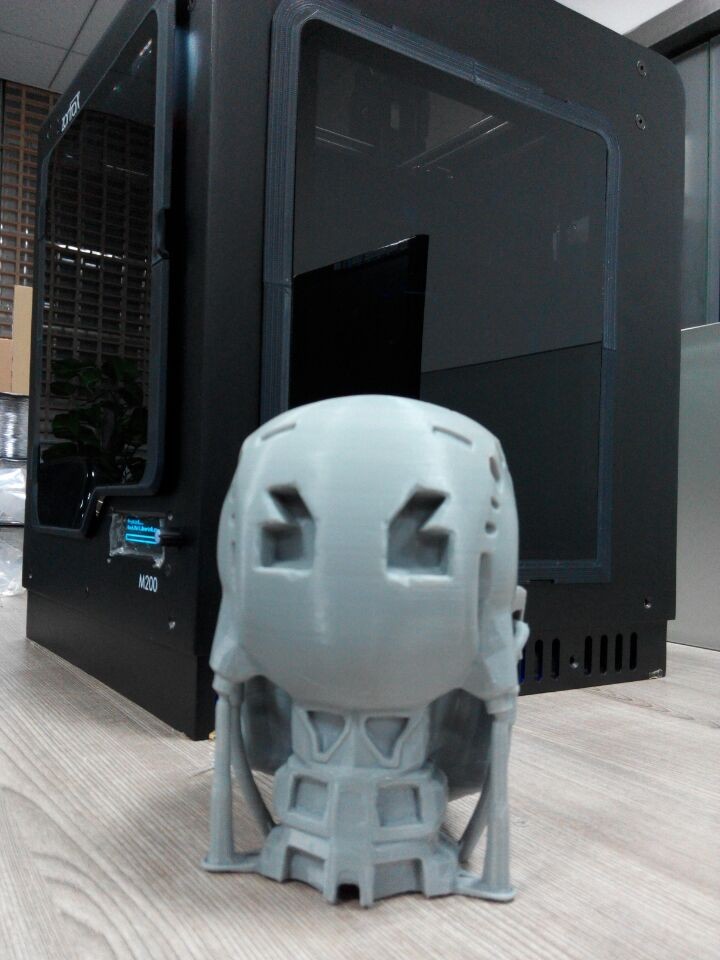

Actually before injection molding prototype of this panels and jigs was printed on the Zortrax: http://forum.zortrax.com/uploads/monthly_11_2014/post-5-0-89760800-1415226795.jpg

Best Regards

Actually before injection molding prototype of this panels and jigs was printed on the Zortrax: http://forum.zortrax.com/uploads/monthly_11_2014/post-5-0-89760800-1415226795.jpg

Best Regards

I figured they were.. Just had to give you guys a hard time.. :D
