Some accessoires for RC models

3D Printing Printroom
1

Frame of the windscreen, Z-ULTRA. Windscreen itself is made of Z-GLASS    no just kidding, thats clear PVC ;)

4551


The black exhausts are Z-ULTRA, shell mode.

Step plate is also Z-ULTRA, the corrugated surface is perfectly scale, otherwise it would be slippery.

Enclosure of the struts, Z-ULTRA shell mode, only the ends are volume models, threaded over the carbon rods which take the loads.

In between a radiator and its mounting. Those radiators, called lobster pots, were top notch in the 20´ies of the last century. :)

Radiators Z-ULTRA, mounting Z-PETG.

4552


4554

regards

Andi

2

What a great model, Andi  :)

We're waiting for more.

3

Thank you ;)

Some other details of another beauty.

To prevent flutter they added some weights to balance the ailerons (Supermarine S6, winner of the Schneider Trophy 1931)

4583

Fairings between strut/float and strut/fuselage

4584

4585

Thats rather simple details, however difficult and time consuming to make (carving wood or bending alu)

Model is made of carbon and epoxy

4586


regards

Andi

4

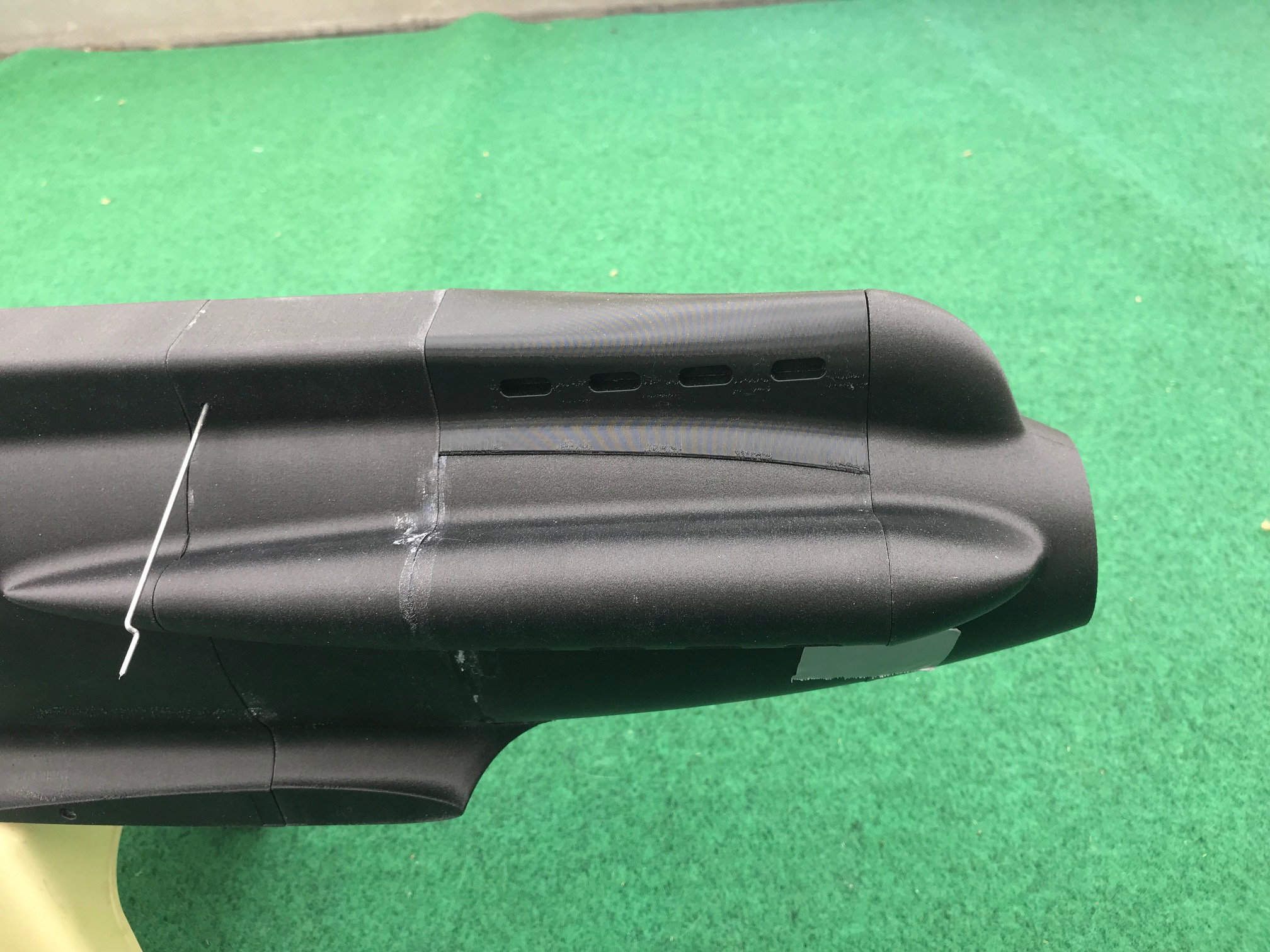

Some pics of the newest project, again a waterplane, Gloster VI.

All prints done with Eumaker Nylon+Carbon, wallthickness ~0,5mm, shell mode.

Elevator assembled. The only glue that works is cyano, and only when coated with a special primer. Also takes paint with that treatment.

5313

Nice surface

5314

Some formers. 6mm hole in the middle, so formers + fuselage segments can be aligned on a carbon rod. Rod is removed after glueing. Formers are also 0,5mm, together with the fuselage 1mm, thats rigid enough and lighter than ply formers.

5315

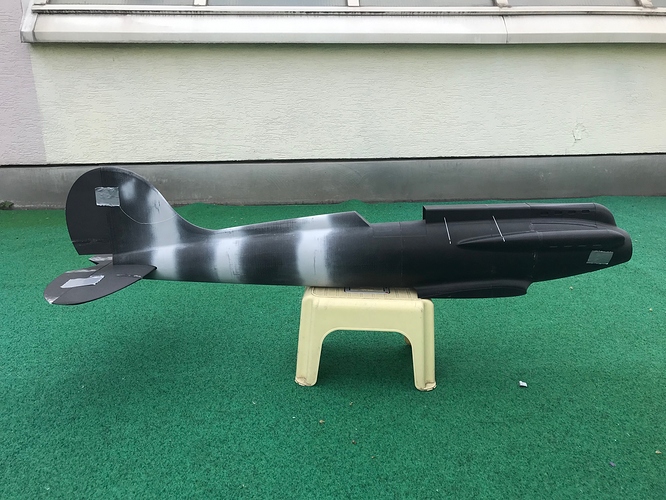

Parts of the fuselage.

5317

5318

5319

Wing construction and first parts. Wing is heavier than common balsa wing, will see how this works out.

5320

5321

5322

regards

Andi

5

aye! does your water plane takes to the air?

6

Hi,

not yet. Had to circumnavigate same setbacks:

  • Nylon expands terribly with temperature. The finished wing bends down, when upside ist exposed to sun, an vice versa. Is now printed with PolyMax PLA and 0,4mm thickness.

  • Same with elevator, altough much smaller in span.

For the time I did not see any deformation with the fuselage, however final test will be the summer sun. I am also afraid wether the glueing will survive the material expansion.

So still work in progress :blush:

regards
Andi

7

IMG_1366
IMG_13662016×1512 911 KB
IMG_1368
IMG_13682016×1512 607 KB

8

awww thanks for the detailed explanation.
and the photos! great looking plane!
